  4. Cross recessed square hooks heavy (iron galvanized)
Schroefduimen zwaar met kruisindruk ijzer gegalvaniseerd | Cross recessed square hooks heavy iron galvanized | Kreuzschlitzhaken Eisen glanzverzinkt | Gonds à vis lourds à empeinte cruciforme acier zingué

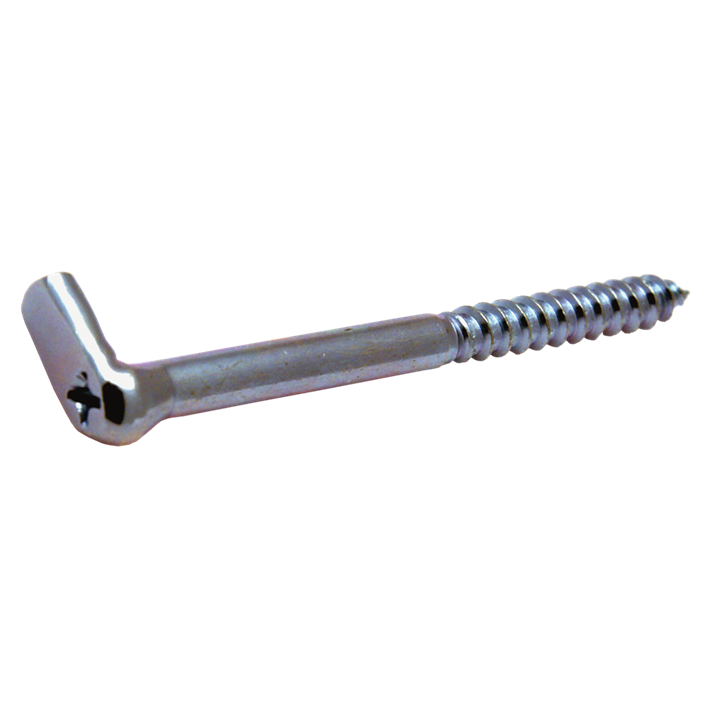

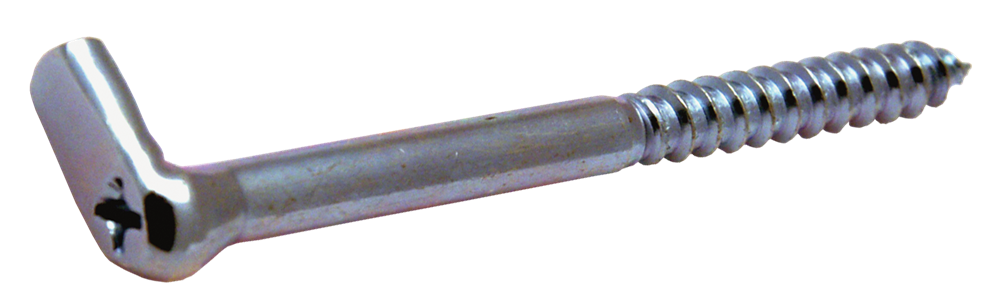

Cross recessed square hooks heavy (iron galvanized)

For dimensions, see table.

Features

Drive PH-2
Material/Surface treatment iron galvanized
Packaging box
Article number d L h L1 S Pack
009.00040.1020 5.25 mm 40 mm 16 mm 20 mm 5,3 mm 100 pcs
009.00050.1020 5.25 mm 50 mm 16 mm 26 mm 5,3 mm 100 pcs
009.00065.1020 5.80 mm 65 mm 18 mm 31 mm 5,8 mm 100 pcs
009.00080.1020 5.80 mm 80 mm 18 mm 34 mm 5,8 mm 100 pcs
009.00100.1020 5.80 mm 100 mm 10 mm 38 mm 5,8 mm 100 pcs
